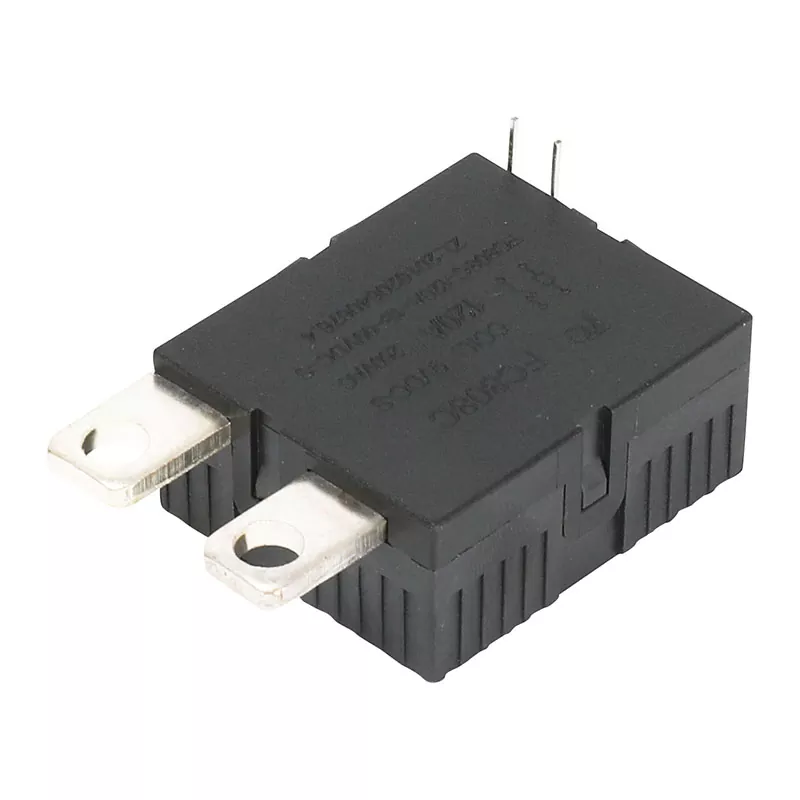

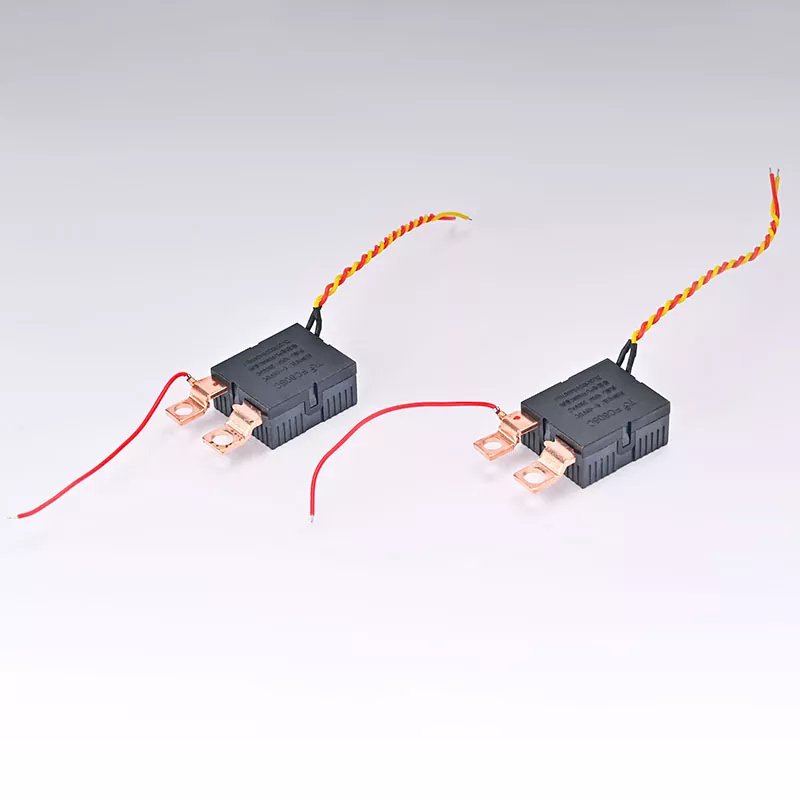

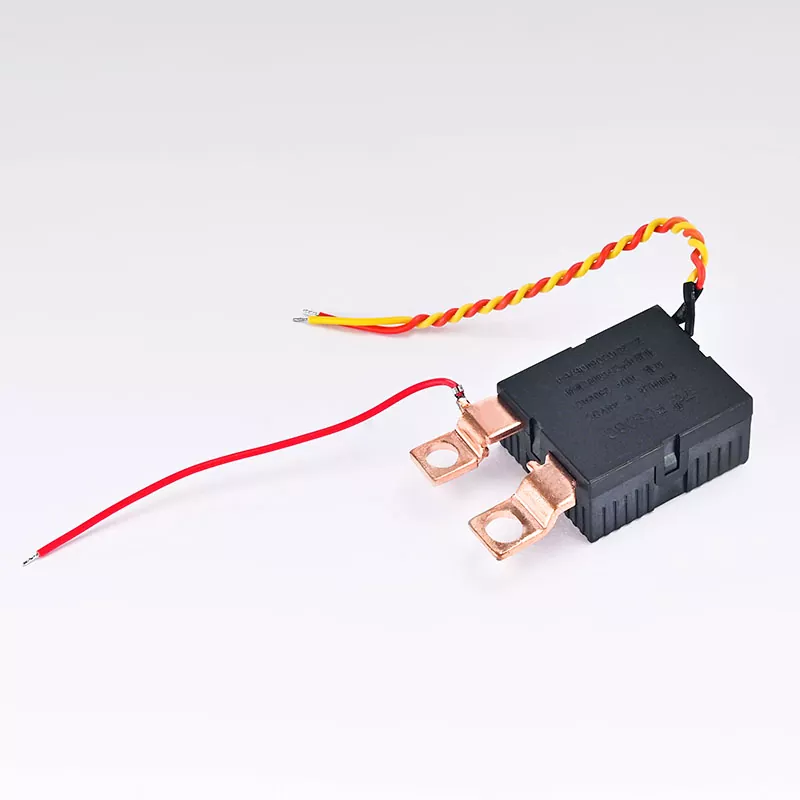

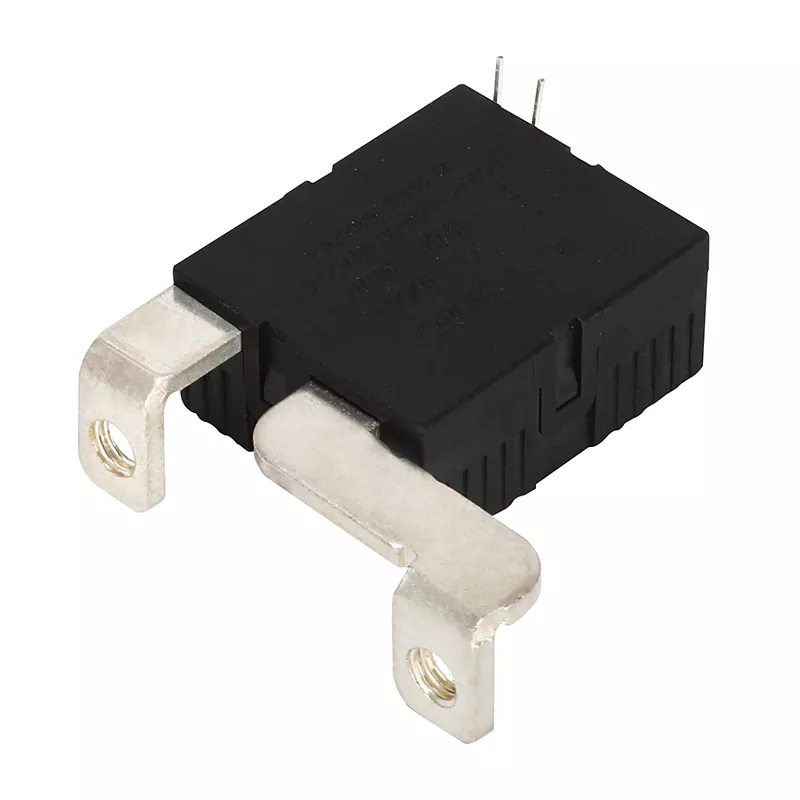

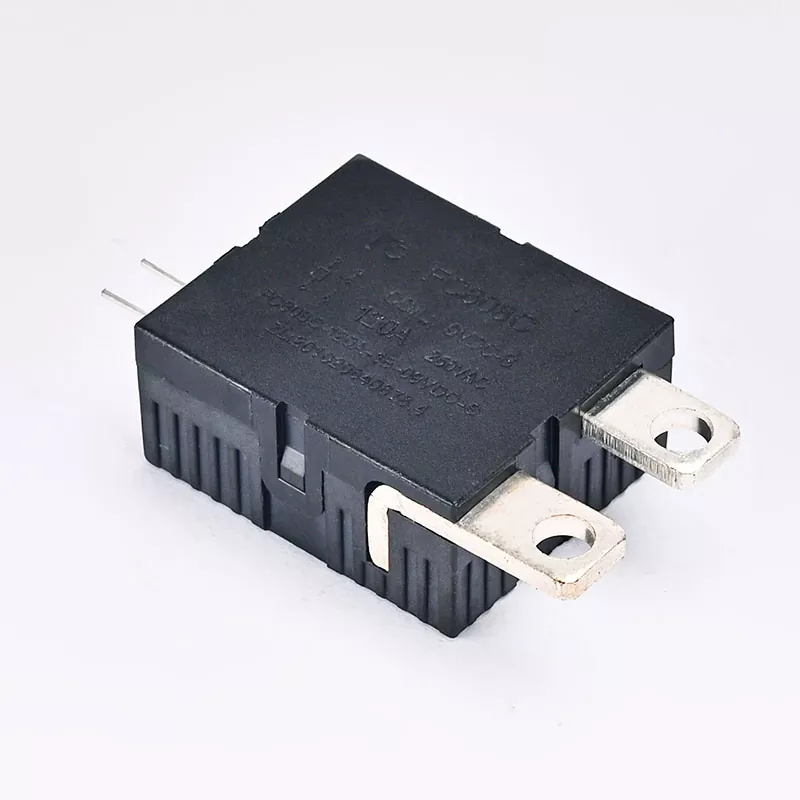

Incurrentes Pile Control 80A 100A 120A Latching Nullam

Specificationes current:80A/100A/120A

Intentione dolor:6V - 48V

Vita electrica:15,000 Times

Temperatus operating:-40° ad 85° Celsius

Materia:Qualis aeris et summus viribus insulator

Adscendens Methodus:Rail Adscendens aut stupra Fixing

Mitte Inquisitionem

depictio producti Features and Applications Institutionem instructiones Informationes emptio

Nostra latching Nullam ordinatur ad requisita mutandi responsionis celeritatis currentis sub modus praecipiens. Circuitus cum consilio efficiente et materiarum qualitate coniuncta, celeritas aperta et occlusio responsionis celeris et stabilis est. Hoc Mandans Pile Control 80A 100A 120A Nullam claudens Nullam non solum firmitatem sub magno usu frequentiae praestat, sed etiam minuit damnum potentiae in transmissione currenti. Eodem tempore, munus upgrade etiam exercetur ad acervum ambitus praecipiens ut efficax ac stabilis vena mutandi sub variis condicionibus operationibus exerceatur, in linea cum foro augendo requisita ad vehiculum electrica infrastructuram praecipientes.

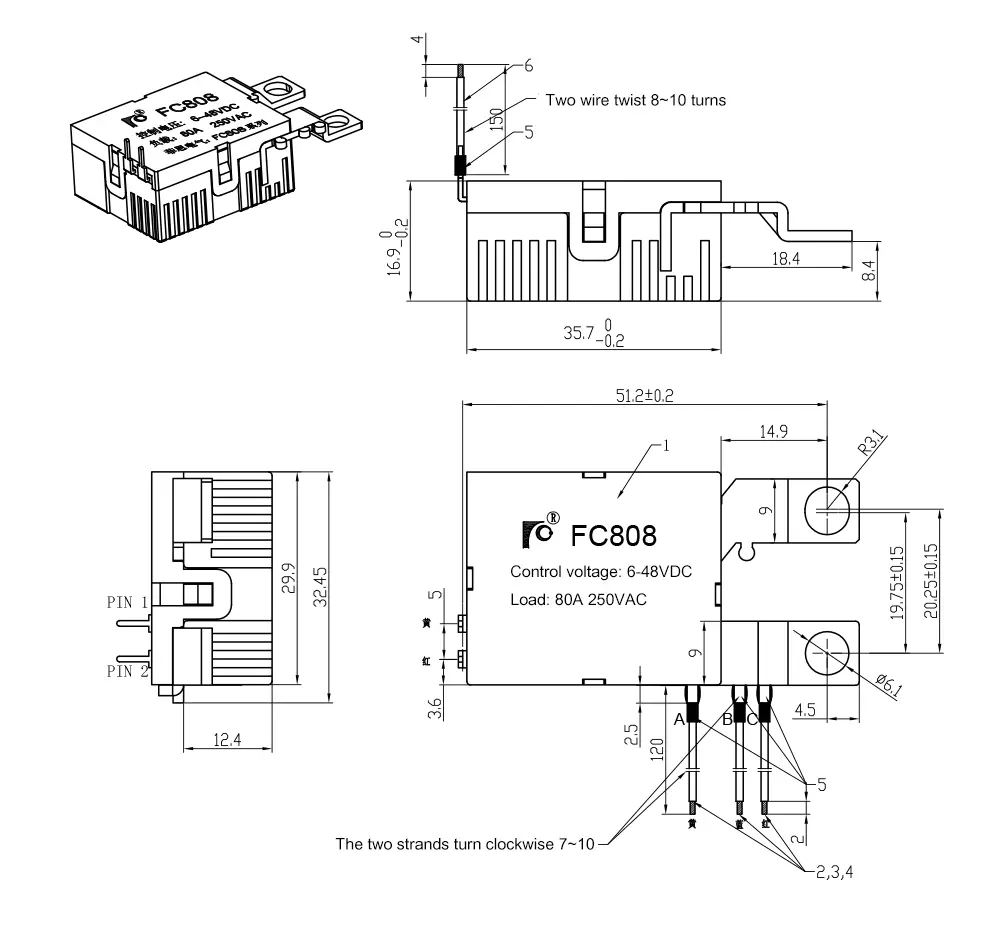

FC808-80A

COIL SPECIFICATION）20℃

VOLTAGE (VDC)	COIL Resistentiam (Q)±10%		COIL Potestas(W)		OPERATING VOLTAGE(VDC)	RELAXATIO VOLTAGE (VDC)	CONCESSUS VOLTAGE (VDC)
VOLTAGE (VDC)	Unius	BIP-	Unius	BIP-	OPERATING VOLTAGE(VDC)	RELAXATIO VOLTAGE (VDC)	CONCESSUS VOLTAGE (VDC)
9	81.0	40.5/40.5	1.00	2.00	≤6.3	≤6.3	48
12	144.0	LXXII/72			≤8.4	≤8.4	60
24	576.0	288/288			≤16.8	≤16.8	120

CONTACT SPECIFICATION）

(FORMA CONTACT)		1B
(Contactum materiale)		(Argentum
CONTACT VOLTAGE STILLO 10A)		Max.15mV
(CONTANTIA)		80A 250VAC
(MAX.SWITCHING VOLTAGE)		250VAC
(MAX.SWITCHING current)		80A
(MAX.SWITCHING POTESTATE)		20000VA
(SERVICE VITAE)	(MECHANICUS)	5×10⁵OPS
	(ELECTRICAL)	1×10⁴OPS

CHARACTERISTICS

(TEMPUS OPERO)	20ms Max
(RELEASE TEMPUS)	20ms Max
(DIELECTRIC VIS) (50/60HZ,1Min)
(CONTACT&COIL)	6000VAC
(CONTACT&CONTACT)	1500VAC
(Agro & Agro)
(INSULATION RESISTENTES,500VDC)	1000MQ Min.
(PONDERE)	38g
(Superatio)	(In drawing)

FC808C-100A

COIL SPECIFICATION）20℃

VOLTAGE (VDC)	COIL Resistentiam (Q)±10%		COIL Potestas(W)		OPERATING VOLTAGE(VDC)	RELAXATIO VOLTAGE (VDC)	CONCESSUS VOLTAGE (VDC)
VOLTAGE (VDC)	Unius	BIP-	Unius	BIP-	OPERATING VOLTAGE(VDC)	RELAXATIO VOLTAGE (VDC)	CONCESSUS VOLTAGE (VDC)
9	81.0	40.5/40.5	1.00	2.00	≤6.3	≤6.3	48
12	144.0	LXXII/72			≤8.4	≤8.4	60
24	576.0	288/288			≤16.8	≤16.8	120

CONTACT SPECIFICATION）

(FORMA CONTACT)		1B
(Contactum materiale)		(ANY)
CONTACT VOLTAGE STILLO 10A)		Max.15mV
(CONTANTIA)		100A 250VAC
(MAX.SWITCHING VOLTAGE)		250VAC
(MAX.SWITCHING current)		100A
(MAX.SWITCHING POTESTATE)		25000VA
(SERVICE VITAE)	(MECHANICUS)	5×10⁵OPS
	(ELECTRICAL)	1×10⁴OPS

CHARACTERISTICS

(TEMPUS OPERO)	20ms Max
(RELEASE TEMPUS)	20ms Max
(DIELECTRIC VIS) (50/60HZ,1Min)
(CONTACT&COIL)	6000VAC
(CONTACT&CONTACT)	1500VAC
(Agro & Agro)
(INSULATION RESISTENTES,500VDC)	1000MQ Min.
(PONDERE)	40g
(Superatio)	(In drawing)

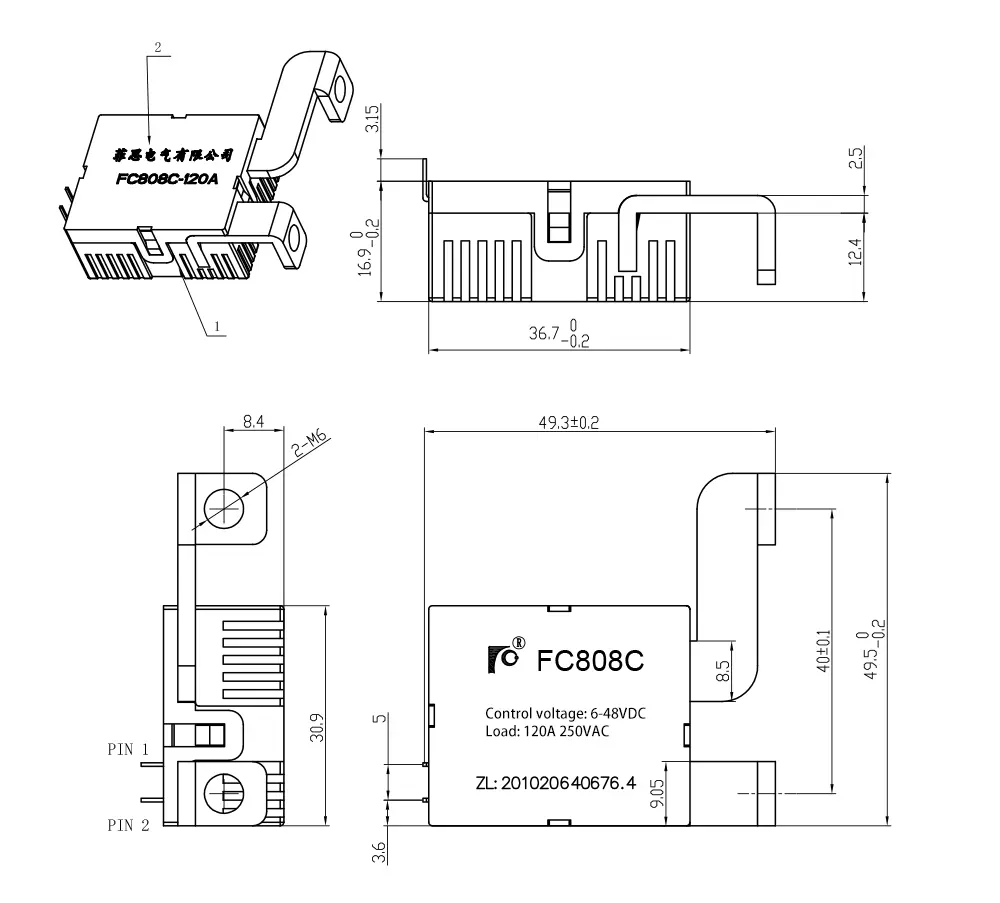

FC808C-120A

VOLTAGE (VDC)	COIL Resistentiam (Q)±10%		COIL Potestas(W)		OPERATING VOLTAGE(VDC)	RELAXATIO VOLTAGE (VDC)	CONCESSUS VOLTAGE (VDC)
VOLTAGE (VDC)	Unius	BIP-	Unius	BIP-	OPERATING VOLTAGE(VDC)	RELAXATIO VOLTAGE (VDC)	CONCESSUS VOLTAGE (VDC)
9	81.0	40.5/40.5	1.00	2.00	≤6.3	≤6.3	48
12	144.0	LXXII/72			≤8.4	≤8.4	60
24	576.0	288/288			≤16.8	≤16.8	120

CONTACT SPECIFICATION）

(FORMA CONTACT)		1B
(Contactum materiale)		(Argentum
CONTACT VOLTAGE STILLO 10A)		Max.10mV
(CONTANTIA)		120A 250VAC
(MAX.SWITCHING VOLTAGE)		250VAC
(MAX.SWITCHING current)		120A
(MAX.SWITCHING POTESTATE)		30000VA
(SERVICE VITAE)	(MECHANICUS)	5×10⁵OPS
	(ELECTRICAL)	1×10⁴OPS

CHARACTERISTICS

(TEMPUS OPERO)	30ms Max
(RELEASE TEMPUS)	30ms Max
DIELECTRIC POTENTIA(50/60HZ,1Min)
CONTACT & COIL	6000VAC
CONTACT & CONTACT	1500VAC
(Agro & Agro)
(INSULATION REPUBLICA.	1000MΩ Min.
(PONDERE)	50g
(Superatio)	(In drawing)
