Ratum est vena:200A
Intentio range:6V-48V
Forma contactus:duplex contactus
Temperatus operating:-40°C ad +85°C
Genus structurae:magneticae Nullam captionem
Dimensiones:Secundum exemplar specifica (detailed potest praeberi notitia)
Pondus:Leve consilium, facile install

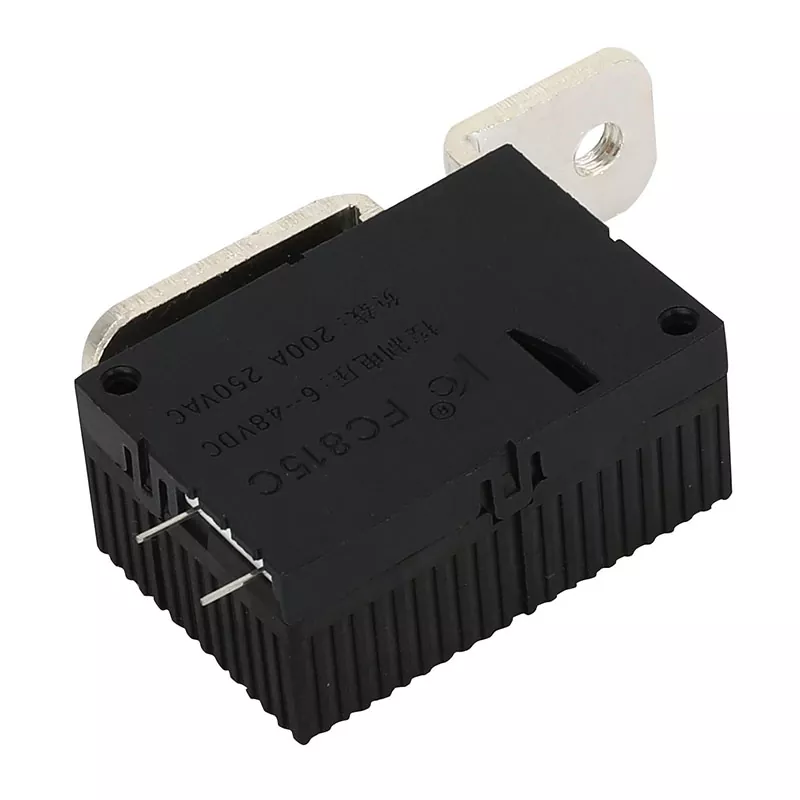

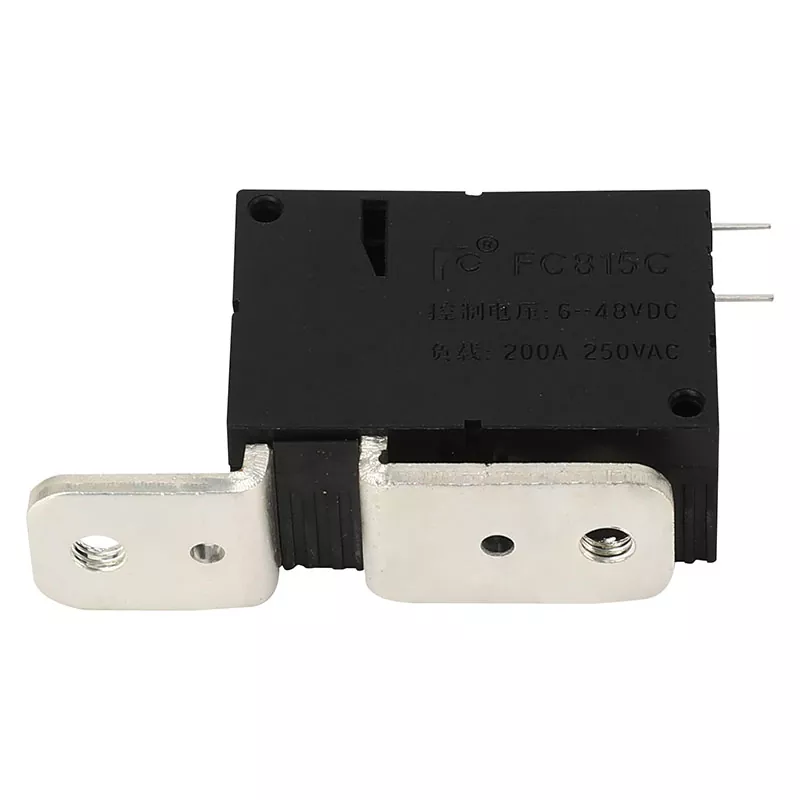

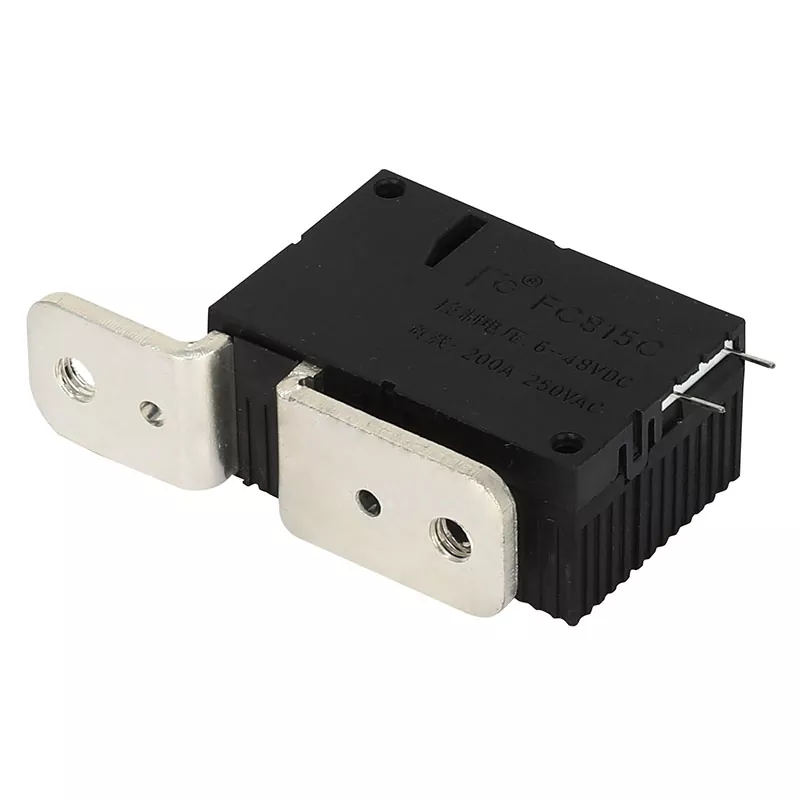

Hoc incurrentes Pile Control 200A Latching Nullam ordinatur ad solutionem pactionis tutam et certae solutionis pro vehiculo electrico praecipiens providere. Cum duplicem contactum et magneticam technologiam tenentes adhibendo, vitas publicas optimas observantias etiam sub magnis hodiernae condicionibus servare potest, salutem ac stabilitatem in tuto collocando. Post strictam qualitatem inspectionem et probationem, cavetur ut singula signa industriae inveniant, valida cautiones pro utentibus praebentes.
| VOLTAGE (VDC) |
COIL Resistentiam (Q)±10% |
COIL Potestas(W) | OPERATING VOLTAGE(VDC) |
RELAXATIO VOLTAGE (VDC) |
CONCESSUS VOLTAGE (VDC) |
||
| Unius | BIP- | Unius | BIP- | ||||
| Uaccam 9 | 28.9 | 14.5/14.5 | 2.80 | 5.60 | ≤6.3 | ≤6.3 | 48 |
| 12 | 51.4 | 25.7/25.7 | ≤8.4 | ≤8.4 | 60 | ||
| 24 | 205.7 | 102/102 | ≤16.8 | ≤16.8 | 120 | ||
| (FORMA CONTACT) | 1B | |
| (Contactum materiale) | (ANY) | |
| CONTACT VOLTAGE STILLO 10A) | Max.1mV | |
| (CONTACT RATING) | 200A 250VAC | |
| (MAX.SWITCHING VOLTAGE) | 250VAC | |
| (MAX.SWITCHING current) | 200A 250VAC | |
| (MAX.SWITCHING POTESTATE) | 50000VA | |
| (SERVICE VITAE) | (MECHANICUS) | 5×10⁵OPS |
| (ELECTRICAL) | 1×10⁴OPS | |
| (TEMPUS OPERO) | 30ms Max |
| (RELEASE TEMPUS) | 30ms Max |
| DIELECTRIC POTENTIA(50/60HZ,1Min) | |
| CONTACT&COIL | 6000VAC |
| CONTACT & CONTACT | 1500VAC |
| (Agro & Agro) | |
| (INSULATION RESISTENTES,500VDC) | 1000MQ Min. |
| (PONDERE) | 100g |

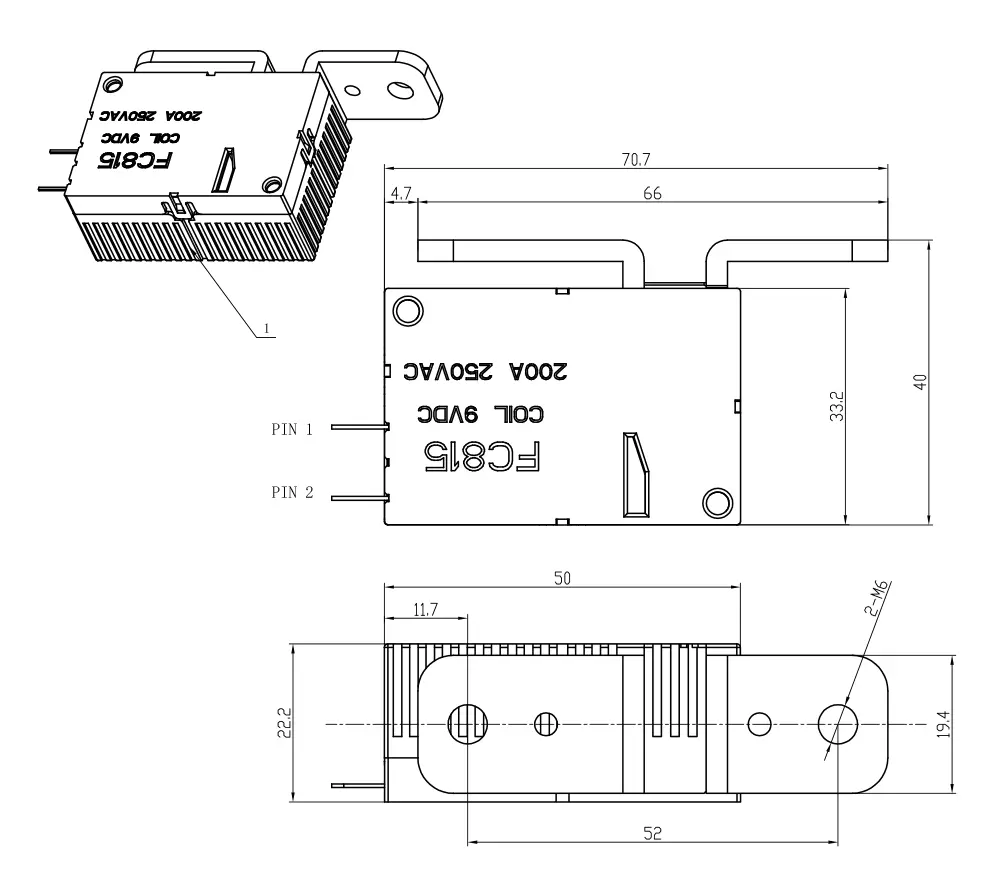

| (Superatio) | (In drawing) |
