80A Single-Phase 4P Rail Type Latching Nullam
  • 80A Single-Phase 4P Rail Type Latching Nullam80A Single-Phase 4P Rail Type Latching Nullam
  • 80A Single-Phase 4P Rail Type Latching Nullam80A Single-Phase 4P Rail Type Latching Nullam

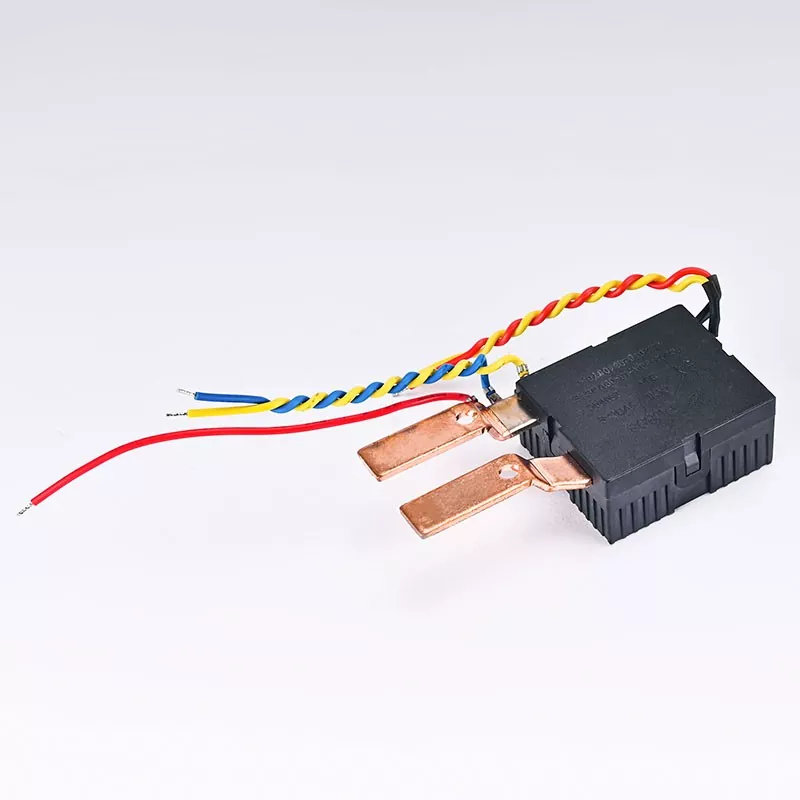

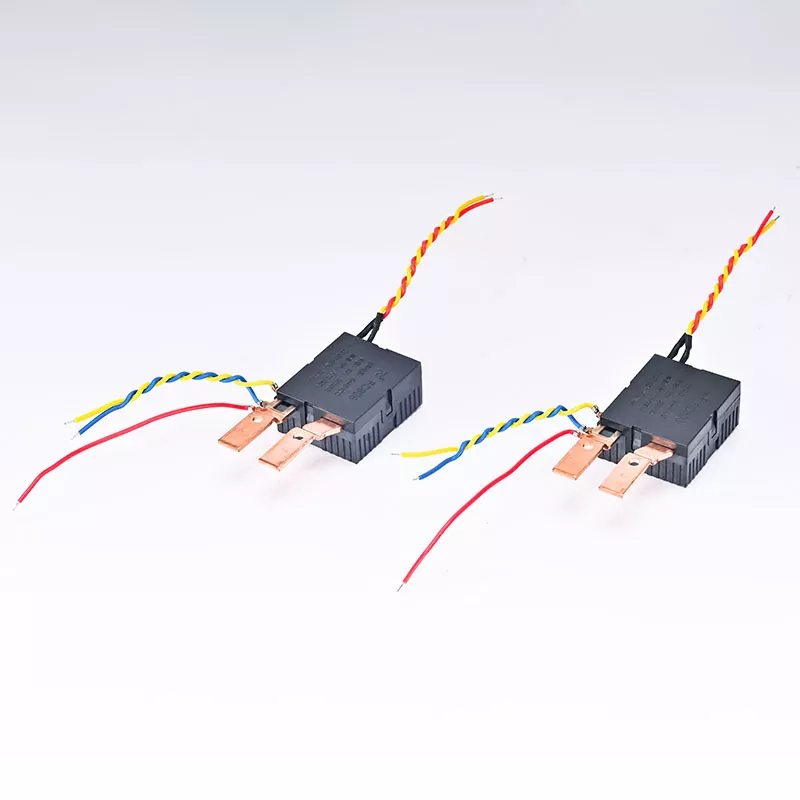

80A Single-Phase 4P Rail Type Latching Nullam

80A Single-Phase 4P Rail Type Latching Nullam a Face Face Electricae officinas est summus fabrica electrica ditionis fabrica ad intelligendas systemata potestates dispositas. Magnetica technologia tardante eo utitur efficit ut nulla fere potestas in statu clauso consumatur, eamque optimam eligit ad solutiones energiae salutaris et efficiens administrandi.

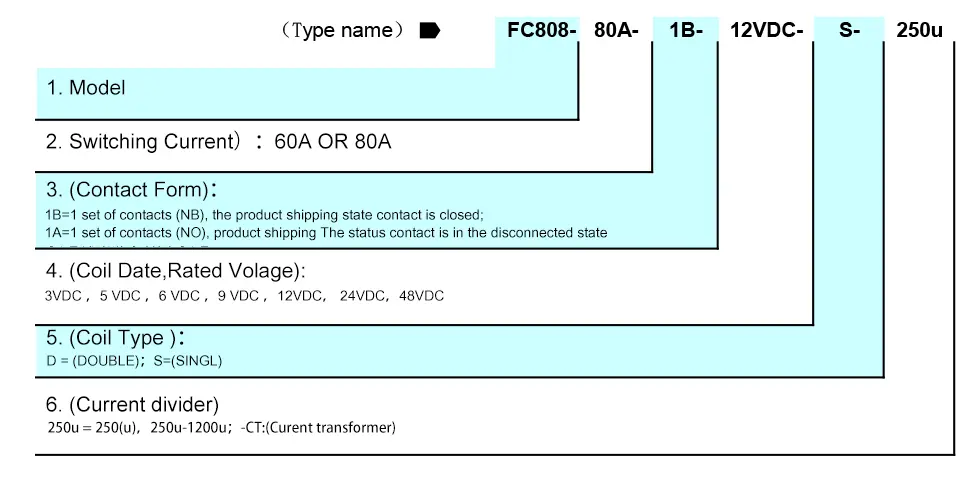

Typus:Una-phase 4P magnetica latching Nullam

Ratum est vena:80A

Agens intentione:6VDC-48VDC

Sampling resistentia:250 microohms (μΩ)

Temperatus operans range:-20°C ad 60°C

Product Dimensiones:Videre productum notitia sheet ad dimensiones specificas.

80A Single-Phase 4P Rail Type Latching Nullam huius producti machinam efficiens in systematis intelligentis potentiae positis est et ad altum fluens et altum onus ambitus convenit. Eius 250 microohm sampling resistentia significanter potentiam minuit iacturam sub condicionibus operantibus normalibus, fabricam magis efficacem faciens. Nullam in consilio rail-escende facit systema integrationem tam opportunam, et utentes celeriter instituere ac reponere in electricis distributione repositoria vel automatis tabulas reponunt. Cum magna operans temperatura range et aspera constructione, cursus publicus varias ambitus asperos sustinere potest et operationem certam diuturnum curare.

COIL SPECIFICATION)20℃

VOLTAGE
(VDC)
COIL  Resistentiam
      (Q)±10%
COIL Potestas(W) OPERATING
VOLTAGE(VDC)
OLSCEG
(VDC)
CONCESSUS VOLTAGE
(VDC)
Unius BIP- Unius BIP-
81.0  40.5/40.5 1.00  2.00  ≤6.3 ≤6.3 48
12  144.0  LXXII/72 ≤8.4 ≤8.4 60
24  576.0  288/288 ≤16.8 ≤16.8 120

CONTACT SPECIFICATION)

(FORMA CONTACT) 1B
(Contactum materiale) (ANY)
CONTACT VOLTAGE STILLO 10A) Max.15mV
(CONTACT RATING) 80A 250VAC
(MAX.SWITCHING VOLTAGE) 250VAC
(MAX.SWITCHING current) 80A
(MAX.SWITCHING POTESTATE) 20000VA
(SERVICE VITAE) (MECHANICUS) 5×10⁵OPS
(ELECTRICAL) 1×10⁴OPS

CHARACTERISTICS

(TEMPUS OPERO) 20ms Max
(RELEASE TEMPUS) 20ms Max
(VIRENTIA DILECTRICA) (50/60HZ,1Min)
(CONTACT & COIL) 6000VAC
(CONTACT&CONTACT) 1500VAC
(Agro & Agro)
(INSULATION RESISTENTES,500VDC) 1000MΩ Min.
(PONDERE) 38g
(Superatio) (In drawing)
