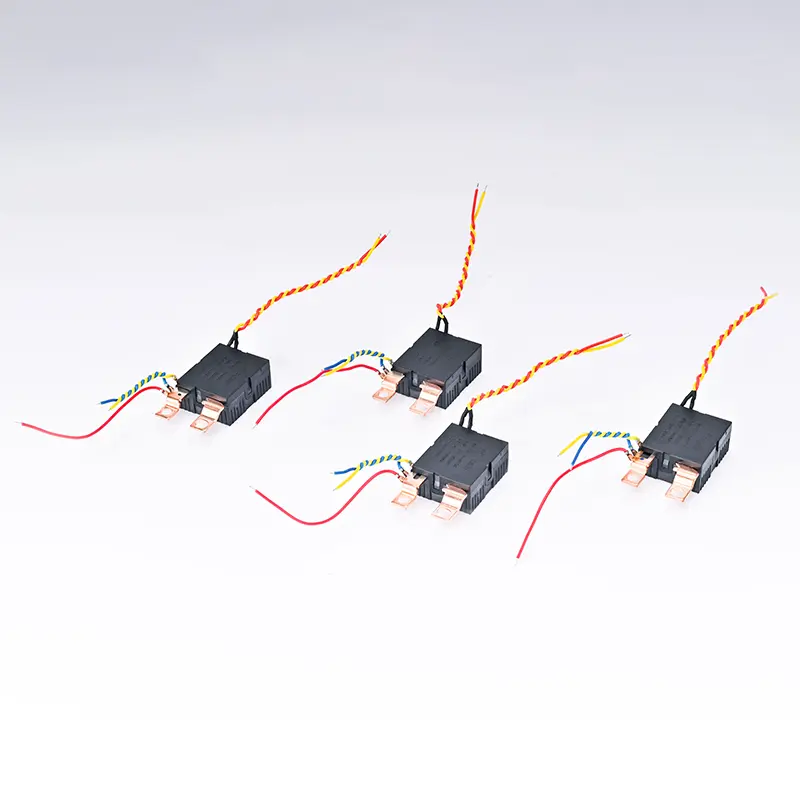

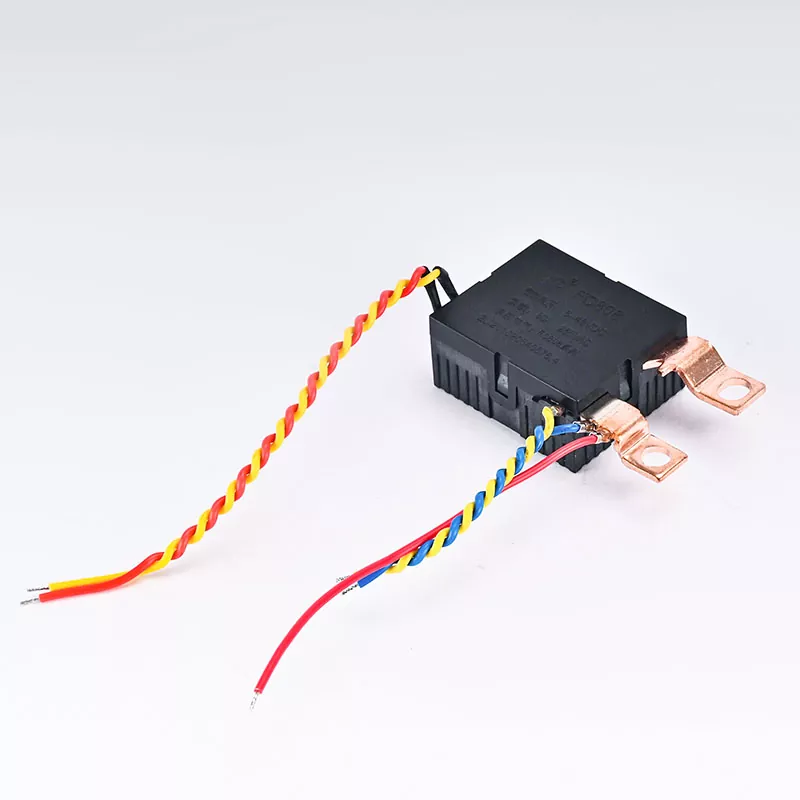

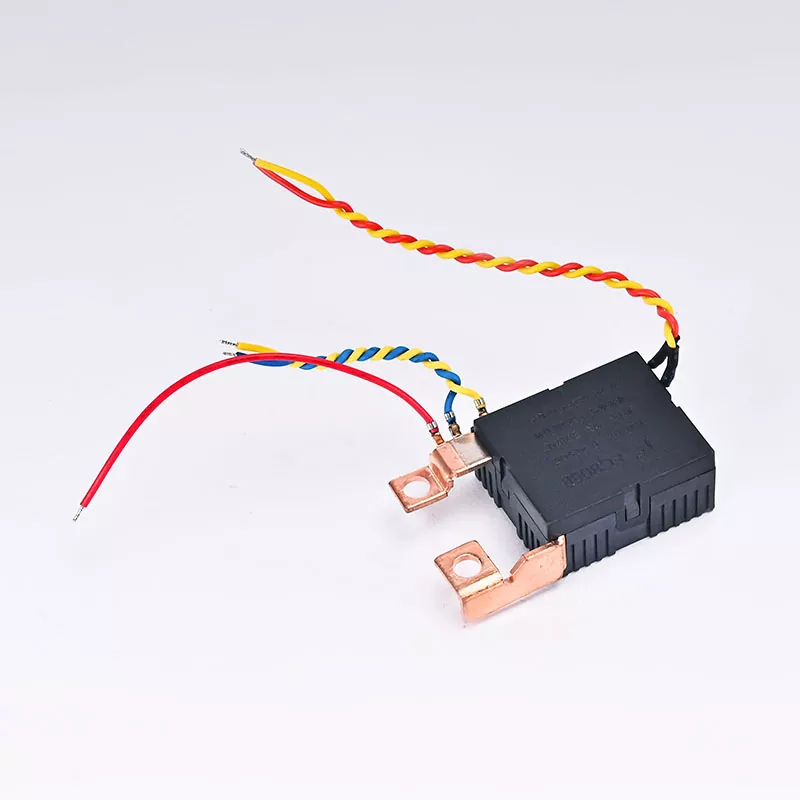

80A Single-phase Latching Nullam

Typus:Unum tempus latching Nullam

Ratum est vena:80A

Coegi intentione:6VDC-48VDC

Temperatus operans range:-20°C ad 70°C

Connection modum:cochlea nexum / terminatio nexum

Dimensiones:Exemplar Latin: 35.7mm x32.45mm x 16.9mm

Pondus:de 0.04kg

Mitte Inquisitionem

depictio producti Features and Applications Institutionem instructiones Informationes emptio

Unicum magneticum latching consilium 80A Single-phasis Latching Nullam stabilem ac firmum transitum efficit imperium dum energiae consummationem minuit. Grata nostra officina est ut venditiones emat novissimas, pretium humile, et qualitatem intrans mensas altas.

COIL SPECIFICATION）20℃

VOLTAGE (VDC)	COIL Resistentia (Q)±10%		COIL Potestas(W)		OPERATING VOLTAGE(VDC)	RELAXATIO VOLTAGE (VDC)	CONCESSUS VOLTAGE (VDC)
VOLTAGE (VDC)	Unius	BIP-	Unius	BIP-	OPERATING VOLTAGE(VDC)	RELAXATIO VOLTAGE (VDC)	CONCESSUS VOLTAGE (VDC)
9	81.0	40.5/40.5	1.00	2.00	≤6.3	≤6.3	48
12	144.0	LXXII/72			≤8.4	≤8.4	60
24	576.0	288/288			≤16.8	≤16.8	120

CONTACT SPECIFICATION）

(FORMA CONTACT)		1B
(Contactum materiale)		(ANY)
CONTACT VOLTAGE STILLO 10A)		Max.15mV
(CONTANTIA)		80A 250VAC
(MAX.SWITCHING VOLTAGE)		250VAC
(MAX.SWITCHING current)		80A
(MAX.SWITCHING POTESTATE)		20000VA
(SERVICE VITAE)	(MECHANICUS)	5×10⁵OPS
	(ELECTRICAL)	1×10⁴OPS

CHARACTERISTICS

(0PERATE TEMPUS)	20ms Max
(RELEASE TEMPUS)	20ms Max
(DIELECTRIC VIS) (50/60HZ,1Min)
(CONTACT & COIL)	6000VAC
(CONTACT & CONTACT)	1500VAC
(Agro & Agro)
(INSULATION RESISTENTES,500VDC)	1000MΩ Min.
(PONDERE)	38g
(0VERALL DIMENSIONE)	(In drawing)
